Welcome WANdisco Subversion Access Control admin guide. Subversion Access Control is a network proxy that provides Subversion Administrators with a comprehensive, easy to setup security agent that offers the following capabilities:
Subversion Access Control works as a proxy between Subversion users and the Subversion server. Subversion users connect to Access Control using the standard port 80. Access Control relays user interactions to the Subversion server using port 81. Subversion users never have direct access to Subversion, allowing administrators to keep control over their Subversion repositories.
Issues Addressed
Issues Addressed
What's new
Issues Addressed
Issues Addressed
What's new
Issues Addressed
What's New
Issues Addressed
Issues Addressed
Issues Addressed
Issues Addressed
Issues Addressed
Issues Addressed
Issues Addressed
What's new
<ForceSync> <Files>true</Files> <Prevayler>true</Prevayler> </ForceSync>Fixed email notification issue that occurred when starting a replicator in Windows if the JAVA_HOME path contained whitespace.
<AuditLog> <Enabled>false</Enabled> </AuditLog>Email notifications are now sent N days before a license.key expires. The default value of N is 10 but this can be configured. (NA-1354)
On Windows platforms, installation directory must remain 'svn-security' and must not renamed. Also the installation directory may not be in a path with whitespaces.
| System setup | |
Operating Systems |
We've tested the following operating systems:
In principle, any operating system that can support a Java environment, Apache and Subversion. |
Subversion server |
Version 1.4 and above (we've tested up to version 1.6.13). Run the Apache Portable Runtime that matches your Subversion version.  Certified Subversion Binaries are now available from WANdisco. Providing the latest builds, without the risks associated with Open Source distribution. |
Subversion client |
Any that are compatible with local Subversion servers. |
Triggers |
|
System memory |
Ensure RAM and swapping containers are at least four times larger than the largest Subversion file. Minimum recommended: 2 GB RAM; 4 GB swapping container |
Disk space |
Subversion: Match to projects and issues. MultiSite Transaction Journal: Equivalent of seven days of changes. To estimate your disk requirements, you need to quantify some elements of your deployment:
Recommended storage = Number of clients checking out files(N) x average checkout sizes (Kilobytes) |
File descriptor limit |
Ensure hard and soft limits are set to 64000 or higher. Check with the ulimit or limit command. |
Journaling file system |
Replicator logs should be on a journaling file system, for example, ext3 on Linux or VXFS from Veritas.
|
Max. User Process Limit |
At least three times the number of Subversion users. |
Java |
Install JDK 1.6 or higher. We recommend using Oracle JDK 1.6. |
Perl |
Install version 5.6.1 or later. For Access Control: Perl::DBI module for Audit Reports other than Users and Groups.
|
Audit reports |
For reports other than Users and Groups, you'll need to use a database such as MySQL, and php. |
mod_authz_svn |
Optional but recommended. See Access Control - Using the Authz Module. Module may be bundled with your version of Apache. |
1. Download the Access Control download file "svnsec.tar.gz" from the WANdisco download website.
2. Create a home directory for the installation, e.g. /wandisco.
3. Extract the "svnsec.tar.gz" file to the wandisco folder.
4. The installation files are now in place, they are arranged in the following directory structure:
drwxr-xr-x 2 root root 4096 2010-08-12 13:54 audit drwxr-xr-x 3 root root 4096 2010-08-12 13:42 bin drwxr-xr-x 8 root root 4096 2010-08-13 13:04 config drwxr-xr-x 3 root root 4096 2010-08-12 13:10 lib rw-r--r- 1 root root 16237 2010-05-21 15:03 license.txt drwxr-xr-x 2 root root 4096 2010-08-12 14:29 logs drwxr-xr-x 3 root root 4096 2010-08-12 13:54 systemdb rw-r--r- 1 root root 24 2010-07-21 13:05 version.txt
5. Copy your Subversion Access Control license.key file into the config directory.
-rw-r--r-- 1 root root 26165 2010-08-13 13:04 backup.xml -rw-rw-r-- 1 User User 512 2010-08-12 15:46 license.key drwxrwxr-x 2 User User 4096 2010-08-12 13:37 licenses -rw-r--r-- 1 root root 3327 2010-05-21 15:03 log.properties -rw-r--r-- 1 root root 366 2010-08-12 14:28 mailconfig.properties drwxr-xr-x 5 root root 4096 2010-08-12 13:42 membership drwxr-xr-x 2 root root 4096 2010-08-12 18:27 passwd drwxr-xr-x 3 root root 4096 2010-08-12 13:42 prefs -rw-r--r-- 1 root root 3047 2010-05-21 15:03 prefs-template.xml -rw-r--r-- 1 root root 2813 2010-08-12 14:26 prefs.xml -rw-r--r-- 1 root root 92160 2010-07-21 13:05 reports.tar drwxr-xr-x 3 root root 4096 2010-08-12 13:42 scm drwxr-xr-x 7 root root 4096 2010-08-12 14:29 security
6. Enter the bin directory and run the setup, using the command:
perl setup
******* Start WANdisco Logging ************** version : unknown build unknown Default member id : 00000000-0000-0000-0000-000000000000 current time : Fri Aug 06 12:20:03 CEST 2010 ******* End Log header ********************** 1281090002964 org.nirala.communication.transport.DConeNet.ListenReactor setupListener INFO: [listen-1] Listening on port : 0.0.0.0/0.0.0.0:6444 Point a web browser to http://10.2.5.124:6444/ to configure the product.
7. From a browser, enter the setup URL (http://<Server IP>:<port>). From the welcome screen, click Continue.
8. Read the WANdisco End User License Agreement, then click I Agree.
9. The next two screens introduces you to the notion that Access Control works as a proxy between the clients of Subversion users and the Subversion server. Subversion users can continue to connect using the the default HTTP port (80).
Click Next
10. On the SVN Security Agent Proxy Settings screen, enter the following details
Node Name: A name you will use for the Access Control server.
Node IP: The server's IP address
Bind Host: By default, this uses the wildcard 0.0.0.0 IP that binds to all network interfaces on the node. Read our Knowledgebase article about the benefits of using the wildcard IP
Client Port By default this is 80, allowing Subversion users to continue without making change to their client setup.
(Linux/Unix) In order to use port 80, Access Control must be run as root.
Admin Console Port 444 by default.
Click
Next.
11. The next step automatically checks the Apache configuration. If the httpd.conf file isn't found, enter its path into the Configuration File entry box, then click Reload Configuration.
Look out for warning boxes for where setup finds a problem - like this one:
If a problem is highlighted, you'll need to manually edit the httpd.conf file, then click on Reload Configuration to have setup check your changes.
User: Owner of the file.
Group: The group in which the owner belongs.
KeepAlive: Setup will look to see that the Keep-Alive directive is set to On.
KeepAliveRequests: Setup will look for 0, which indicates that no maximum limit will be set for connection requests.
KeepAliveTimeout: Set very high (500,000 seconds) to ensure connections don't timeout.
Listening IP: For a node with multiple IPs, this will indicate the IP used for listening.
Listening Port: The default listening port for Apache is 8080.
Override Listen Directive with a virtual host: Tick this box if the Apache parser doesn't pick up the correct Listen IP/port, maybe as a result of setting up Subversion to be only accessible through a virtual host. If you tick the box you'll need to manually enter hostname/IP.
Click Next. To continue without the Apache config check, click Skip.
12. Setup now allows you to modify your Subversion settings. Watch for alerts that confirm the port and path that Access Control will associate with your Subversion repositories.
Subversion Server Port: the port on which Access Control talks to Subversion,(8080 by default).
SVN Executable: the fully qualified path to the Subversion executable. Setup will try to fill this in automatically, otherwise enter it manually.
Use authz-based access control? Tick the box to use Authz. If you tick the box you'll need to locate the fully qualified path to the Authz file.
Authorization File: Enter the path to the Authz file.
Use LDAP for authentication: Tick the box to use an LDAP service. Provide the URL to your LDAP server.
java -jar Dldapadminreset.jar /path/to/passwordwhere /path/to/password points to a file containing the original WANdisco admin password (ie. not an LDAP login).
java -Dldapadminreset.port=6445 -jar ldapadminreset.jar /wandisco/pass.wd
If you're specifying secure email (using a truststore) and LDAP authentication over SSL (using a truststore), the same truststore mustbe used for both sets of certificates. If different truststores are used then the LDAP truststore will overwrite the email truststore and secure emails will stop working.
Use LDAP for WANdisco admin authentication: Tick this option to use LDAP to manage the admin login credentials for Access Control's admin console. If you select this option you will need to provide a URL for the LDAP server in the format ldap(s)://host:port/basedn?attribute
The option to use LDAP for WANdisco admin authentication is only available when you first select Use LDAP for authentication (which applies to all users).
Test LDAP Connection Click this button to confirm that you're able to connect to your LDAP server before continuing with the setup.
At the bottom of the screen is a table that confirms the DAV Location and password control for your repositories. You can click Edit to make changes.
LDAP Admin Authentication URL syntaxThe LDAP Admin login functionality lets you specify an LDAP group or subtree that contains users who can login as administrators. The format of the URL is:
ldap(s)://host:port/basedn?attribute?scope?filter
objectClass=*), which will search for all objects in the tree.Once a user is deemed to be an admin based on the criteria above, authentication is carried out against the LDAP Authority system, so it is important to ensure a relevant LDAP authority has been defined.

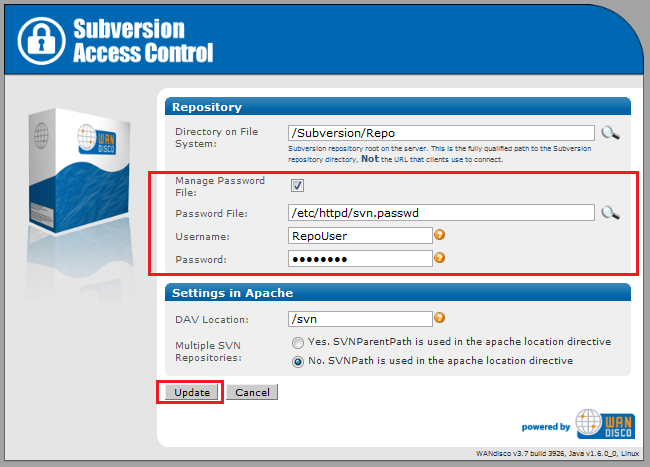

Editing repository settings:
Directory on File System: Repository location. This needs to be the fully qualified path to the repository directly, not the URL that clients use for remote connection.
Manage Password File: tick the box to allow your Subversion password file to be controlled by Access Control. If selected you'll need to provide the username and password of the Subversion user account that will be used by Access Control to browse the repository. The account will need read and write access to the whole repository.
Settings in Apache
DAV Location: You can specify the location of the DAV file.
Multiple SVN Repositories: click Yes if you are using SVNParentPath for multiple repositories, or No if using SVNPath.
Click Update to apply your changes, or Cancel to return to the previous screen without making changes.
13. The next screen is for your email settings. Entering email settings will allow Access Control to send out alert emails that can help you identify problems.
SMTP Authentication: If you select No, you'll need to provide your account.
Username and Password: Enter these if you select Yes to SMTP Authentication.
Use SSL/TLS: Choose yes if you wish to send emails over a secure connection.
Host: Enter the address of your mail server.
Port: Enter the SMTP port, 25 by default.
Send Admin Notification To: The email address (You can only specify a single address, not a comma delimited list) to where notifications will be sent.
Email settings are optional. If you don't need alert emails, click Skip to continue. Otherwise, click Next.

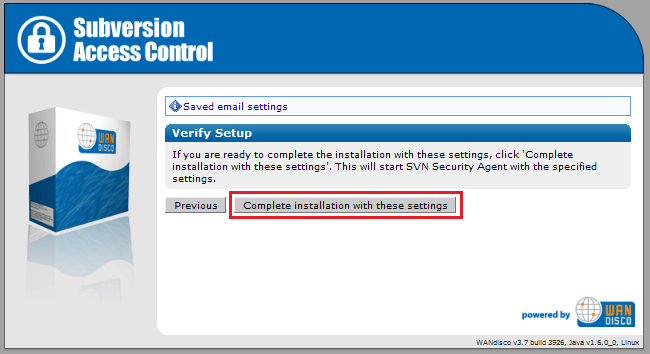

14. The setup has finished gathering information, You can go back and make changes or click Complete installation with these settings to save them and complete the installation.
15. When you click Complete installation with these settings Access Control's SVN Security Agent will automatically start up.
Welcome to the admin guide for WANdisco's Subversion Access Control. This guide will help you take control and manage the access of your Subversion repositories.
Access Control has a browser-based Admin Console for making user access changes, changing settings or viewing system logs.
Connecting to the Admin Console
Connect to the Admin Console through a web browser, using your server's hostname or IP address, along with the administration port (defaults to 6444).
On connecting you'll be prompted for a login. The default admin username is admin and the password is specified during setup. This section will run through the different screens available in the Admin Console, explaining what they do.
The security tab is the business end of the Admin Console, it handles all user related functionality.
Password fields appear for users only if you chose to have Access Control manage the Subversion password file during installation. For DAV, Access Control does not handle the user authentication.
Roles are used to define the permissions available to different kinds of users.
Create Roles: Create new roles and assign them privileges. Subversion permissions are: list, read, write, delete, copy, admin. See Managing Roles and Permissions.
List Roles: Display all roles, including pre-defined and any new roles created using the 'Create Roles' screen. Privileges are also displayed. To delete a role, click on the corresponding checkbox and click Delete Selected.
Manage Subversion user accounts.
Create User: Create any Subversion user.
Tip
Usernames can contain any characters except for ~ (tilde), " (double quote) or : (colon).
When importing users, it's possible to include a comma in a username by using an escape character, e.g.
,"Reninngton\, Jr.","Oscar"
List Users: This command displays all users.
The Last Recorded Access column shows the date and time that each user last accessed (or attempted to access) a Subversion repository.
Alert
userid,role,lastname,firstname,email.
Control the groups used for organising Subversion users.
Create Group Create a new group.
List Group Shows all the groups. You can list all users in each group.

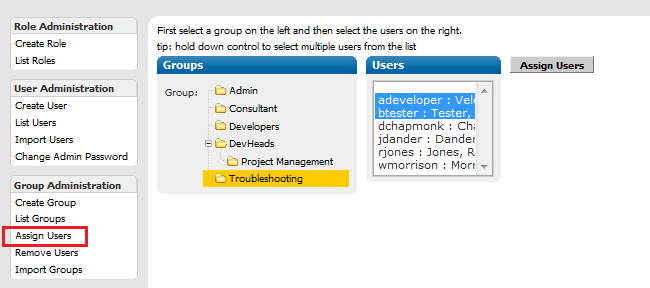

Assign Users Allows you to assign users to groups. If a user is already in a group, his or her name does not appear in the list of available users.
Remove Users Use this to remove users from a group.
Import Groups You can import a list of existing groups. The import file must be a comma delimited text file, of the format groupname,parentname[,description]. If there is no parent name, specify null.
This menu can be toggled off. See Toggling the ACL Display. For a complete discussion on ACLs, See About Access Control Lists.
Create ACL Create more than one at a time, use List ACLs.
List ACLs Lists all existing ACLs. You can create, edit or delete ACLs with this command. Use this command when creating multiple ACLs.
Make use of external authentication, allowing for the administrator to automatically synchronize the user properties (user id, password) from an LDAP/NIS database.
LDAP/NIS - Stores settings for an external LDAP / NIS service.
New Users - Add new users.
Ignore Users - List users to ignore.
The system tab is used to manage system functions such as viewing the Access Control log or importing and exporting user settings.
Log Viewer - View Access Controls log file.
Logs can be generated over multiple lines, which can make reading/performing greps difficult. It's possible to limit each log to a single line by using the following procedure:
org.nirala.trace.WandiscoLoggingFileHandler.formatter = org.nirala.trace.SingleLineFormatter
Disk Monitor - Set how Access Control monitors disk usage, warning you if the system's available disk space gets too small.
System Config - Used to control the display of Role ACLs and Sibling Groups.
Log Level - Access Control uses one log, and the default level is info. The levels vary from severe, where you get only the most severe warnings, to finest, which logs every action.
Free Memory -This command frees the memory (GC stands for garbage collection) for the current node. The command occurs when you click on this menu selection. The display shows information on the command that was just performed.
Export Settings - This command allows you to export WANdisco settings, including all users.

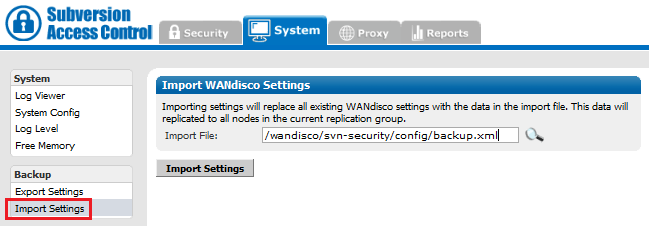

Import Settings - This command allows you to import WANdisco settings, including all users.
The Proxy tab handles Access Control proxy settings which alter the way that Access Control works between Subversion and users.
Proxy Status - Displays the node's status in the tab's main panel.
Log Viewer - You can view the logs, including the main log - SVNProxyServer-prefs.log.
SVN Settings - The current values are displayed. You can edit them here.
Email Settings - Email settings that Access Control uses to send status alerts.
Stop Proxy -Stops Access Control and prevents client access.
Shut Down Node - Shuts down Access Control completely.
Configure URI - Configure the address that will be used for viewing reports externally. Read about Audit Reports.
User Group Reports - Generate User Group reports and view them with Log Viewer in the System and Proxy tabs.
Audit Reports - Access Control logs any Subversion user access, these logs are controlled through the Audit Reports tab.
This chapter provides information on setting up users for Access Control version. You can create users, delete users, and search users by several criteria.
If you have an existing LDAP or NIS database, you can integrate it with Access Control. WANdisco offers a free, unsupported LDAP plug-in to support integration.
During installation you choose whether to have Access Control take control of Subversion's password file.
If Access Control is managing the password file:
New users entered into Access Control automatically gain access to Subversion using the same authentication details.
If Access Control is not managing the password file:
New users created in Access Control must also have accounts (with identical details) created in Subversion.
If a user reports of getting an Access Denied message on their client, check they have been regisered on both Access Control AND Subversion.
To check if Access Control is managing the password file:
Go to the Proxy tab (1), click SVN Settings (2), and clicking Edit on the repository list. If the Manage Password box is checked (3), Access Control is managing the password file.
If you didn't set Access Control to manage the password file, but would like it to do so, check the Manage Password file checkbox, browse to the password file, and click Update.
For Access Control, all users must have a role. Use either a predefined roles, or create your own. See Managing Roles and Permissions and Managing Users.
If Access Control is managing the password file:
Use the import tool to bulk import a number of users up to the limit of your license. If the user exists in the Subversion password file, and you also import that user into Access Control, the entry is not overwritten. If the user is imported, but does not exist in the password file, the password is set to the user's email address.
If Access Control is not managing the password file:
A number of new users can be created up to the license limit, once Subversion authenticates them. You can also use the Import Users command.
For Access Control, you must specify a role for each user. Roles are discussed in
About Roles and Groups. Use a CSV file to import groups of users. The file should follow the format userid,lastName,firstName,role,email[,group1[,group2...groupN]].
To add a new user, click on Create User in the Security tab. Specify a (Subversion) username. Enter the password, and the user's names. The email address is optional.
To remove users, click List Users. Select the users you want to delete with the checkbox on the left and click Delete Selected.
To get a list of all the registered users, click on the List Users link under User Administration on the Security tab. The User List page shows all users by default. The page size is set to show 25 users per page, but you can change that by selecting View Per Page on top of the user list. Arrows at the right corner allow you to scroll to the next or previous page.
Use the Search box to find users. Begin typing a user's first or last name, and an incremental search starts. Return to the full list by clearing the Search box.
All the columns in the user list are enabled for sorting. Clicking on the column header lets you sort in ascending or descending order. The sortable columns include: Userid, last name, first name, and email.
You can click on the Userid link to edit the user's details. You can also delete as many users as you like. Delete all users by checking the checkbox in the table header, and then click the Delete Selected button.
You can import an existing list of users with Import Users, found under User Administration on the Security tab. The import file must be a comma delimited (CSV) text file with the format: userid,lastname,firstname,email.
If Access Control is controlling the Subversion password file, user passwords are changed to user email addresses upon importation. We recommend notifying users to change their Subversion password, as described in the next section.
Use this only for imported Users. Importation changes user passwords to their email addresses. Users can change Subversion passwords in WANdisco without logging in to WANdisco. Have the users go to:
http://<Access Control IP>:6444/
The Admin Console will appear. Have the users click on Change User Password.
The Change Password box appears. Users can enter their Subversion username, and their password (which is now their email address). Have them enter a new password and confirm it, then click Change Password. The users have successfully changed their passwords.
This chapter provides information on setting up Access Control's users, roles and groups. Most customers find that managing users' roles and groups offer enough control. However, you can gain finer control with specific Access Control Lists
There's more information about using the Authz module in conjunction with Access Control — Using the Authz Module.
Default Permissions: Access Control initially does not allow any user access to any resource. By default, all users are denied. This is essential for security: it closes the window of vulnerability that would allow everyone full access between the time WANdisco is first installed and the time it takes an administrator to create access rules. In order to grant access, the administrator has to explicitly create roles, groups (which define resources) and users.
Parent Directory Inheritance: Group members automatically gain membership of subgroups created under their group. As a result they'll get access to all resources available to the subgroup. So, access is controlled down the directory tree, while inheritance, goes up the directory tree.
Access Control's roles are based on Subversion permissions. The default permissions are:
The following table maps some actual Subversion commands to the minimum permission needed to execute them. This isn't a complete list.
| Subversion Command | Permission Required |
| info | List |
| log | List |
| ls | List |
| status | Read |
| cat | Read |
| diff | Read |
| checkout | Read |
| cleanup | Read |
| update | Read |
| revert | Read |
| annotate | Read |
| propget | Read |
| proplist | Read |
| update | Read |
| commit | Write |
| import | Write |
| add | Write |
| unlock | Write |
| move | Write |
| mkdir | Write |
| copy | Copy |
| delete | Delete |
Access Control comes with a few default roles with preset permissions. You can modify these roles as you wish. You can also create new roles. The permissions are inherited, meaning if a role has the write privilege, it also has the list and read permissions as well. The roles work with groups, which you defined as files or directories. So the roles are applied within the groups (the defined files or directories).
| Default Role | Privileges |
| Audit | list |
| Manager | read |
| Developer | write, copy, delete |
| QA | copy |
| Admin | admin |
List Roles ,under Role Administration, shows all roles: the default roles and any you have created. The permissions for the roles are also listed.
Admin serves as a permission, a role and a group. The Admin privilege has no constraints on it whatsoever. An admin has full permission to everything in the repository and is intended to be used by a System Administrator.
If you assign a user the Admin role, or give a user Admin privileges, or put a user in the Admin group, that user has full access to everything in the repository. Do not make any ACLs for anyone with Admin role, privilege, or group. If you need to exclude a user from certain files, assign that user another role without any use of the Admin privilege, role or group.
Special consideration should apply for list and read access rules. Unlike write operations, the
read and list operations can traverse directory hierarchy. Therefore it makes sense to always
allow/deny read and list privileges on all files under a directory. This can be done by specifying a
wild-card pattern (|.*), for example:
allow read from /svnroot/trunk/module1(|.*).
In the Security tab, select Create Role. Enter a name for the role and select the Subversion permissions you would like this role to have. Any user you assign to this role has the permissions you specify for this role.
Select List Roles. The defined roles display. Select the name of the role you wish to edit. The Edit Role page displays, listing all possible privileges. The role's existing privileges are checked.
Make any changes, and click Update Role. Any user assigned to that role, both for current and future assignments, has these same privileges.
Make any changes, and click Update Role. Any user assigned to that role, both for current and future assignments, has these same privileges.
Select List Roles. Use the checkboxes to mark the roles for deletion. Select Delete Selected. The role is deleted throughout Access Control, even if users are assigned to that role.
Think carefully when deleting roles. If you delete a role, make sure no user is assigned to that role before you delete it.
Creating groups allows you to manage projects, providing a convenient way of organizing many users into a related category for controlling access. You assign each group to a set of files, a directory hierarchy, or to individual directories, to either allow or deny access to specified files and directories.
You can create and delete groups, associate files, directories and modules to a group, add to and remove users from a group, and perform bulk imports of existing groups. You can also restrict access to a group by client IP address.
Groups are hierarchical, with a parent-child association between a group and a sub-group.
To add a new group, select Create Group. The Group Properties page appears:
The name can contain any character, including white space, except the underscore character.
The group name is the primary key into the group database, therefore it cannot be changed once
it is created. Enter relevant text in the description field. Access Control automatically tracks the
creation and modification time on the groups, which you can see in groups-reports.txt in Log Viewer.
You can optionally create this group for a specific client IP pattern. If you do enter an IP pattern in the Client IP Pattern field, no other client IPs are allowed unless you create specific ACLs for those other client IP addresses. You must use regular expressions.
The Rule section allows you to define the files and directories for this group. Select add allow or add deny, and browse to the file or directory.
Add as many entries as necessary for a group, ensuring that all required directory permissions are accounted for:
A group inherits all of the resources and privileges of its sub-groups.
Follow these steps to create a sub-group.
1. Make the sub-group as you would a group.
2. Go to List Groups.
3. Click Edit for the sub-group. The Group Properties page appears.
4. In the Group Assignment section, check the radio button of the subgroup's parent.
5. Click Save Changes.
6. Go back to List Groups and confirm the structure is correct.
To delete a group, click List Groups.
Click Delete. You'll be asked to confirm the deletion.
When you delete a group, the association between the group and any users who belonged to that group is broken. The associations between any sub-groups and users are also deleted. If you want to keep a sub-group, first select a new parent for that sub-group, and then delete the old parent group. The sub-group then does not get deleted.
To add users to a group, click Assign Users on the Group Administration section of the menu.
Select a group on the left (1). The list of users on the right (2) updates to reflect potential new members for the group you selected. Users already in the group are excluded from the Users list.
If a user belongs to a parent group, they automatically belong to any sub-groups underneath it, even though the list does not reflect that. However, a user can belong to a sub-group and not belong to the parent group.
Select the users to add to the group (2) . To add several users at once, hold down the Control key while you click on your selections.
You can assign a user to any number of groups with the Assign Users command. Note by selecting a group, the user is automatically assigned to the group and all its sub-groups. To unassign, check the checkbox and click Save Details.
To delete users from a group, click List Groups, on the Groups list, click List Users.
The list of users on the right updates to reflect that group's users. Select the users to remove from the group. To remove many users at once, tick multiple users. Click Delete Selected.
If a user belongs to a parent group, they automatically belong to any sub-groups underneath it; however, the screen does not reflect this. If a user is removed from a parent group, they are also removed from any sub-groups.
To view a list of which users belong to which groups, click List Groups(1).
All the groups are displayed. Click List Users(2). All the users in that group are displayed. To view users who are explicitly members of this sub-group and those members inherited from any parent groups, check the Show Inherited checkbox. Use the Group drop-down list to view the users belonging to another group.
The Userids are linked to the User Properties page, in case you need to edit a user. You can also edit and delete groups from this page.
You may have groups already set up outside Access Control. If so, you can import them using the Import Groups command, in a comma separated text file, of the format groupname,parentname[,description].
Type in the pathname to the file, and click Import. The new groups are added to the existing groups. Define the resources for this group or subgroup, and assign users.
Many people find that managing users' roles and groups offer enough access control. However, Access Control allows you to have very specific control of users through the use of Access Control Lists (ACLs).
When a user tries to execute a Subversion command, Access Control's ACL engine always follows the same process to make an allow or deny decision.
First, the ACL engine checks if a user is registered or licensed in the WANdisco user database. If the user is not registered or licensed, the user is denied access.
In order for a rule to be matched, the ACL engine verifies that a user's name or the group(s) a user belongs to, IP address and file/directory matches the patterns specified in the ACLs. Rules applicable to a specific user override the rules applicable to a group.
| User access rights | Group access rights | Access Control allows or denies |
| none specified | allowed | allowed |
| none specified | multiple groups, any of which is allowed | allowed |
| none specified | multiple groups, any of which is allowed | denied |
| denied | multiple groups, any of which is allowed | denied |
| allowed | denied | allowed |
| denied | denied | denied |
Access Control allows you to automatically edit multiple rules. When you submit changes to ACLs, Access Control guarantees either all the rules are updated or none at all.
When setting up a rule on a specific directory, note that the directory name is treated as a regular
expression pattern. For example, if you want to allow write access to all the files under a directory
/svnroot/trunk/docs, you need to specify one of the following patterns:
/svnroot/trunk/docs|/svnroot/trunk/docs/.*
or
/svnroot/trunk/docs.*
The first pattern allows write into the directory (to create new files or directories) as well as all
files under the .../docs/ subdirectory. The second pattern allows access to all files and subdirecties
that match /svnroot/trunk/docs, including, /svnroot/trunk/docs, /svnroot/
trunk/docsmaker, /svnroot/trunk/docs2, etc.
Special considerations should apply for list and read access rules. Unlike write operations, the
read and list operations can traverse directory hierarchy. Therefore it makes sense to always
allow or deny read and list privileges on all files under a directory. This can be done by specifying
a wild-card pattern, for example:
allow read from /svnroot/trunk/module1|/svnroot/trunk/module1/.*.
To use the copy privilege, specify it on the source directory. It allows a user to copy from a given
directory. Make sure you enable the write privilege on the parent directory of the intended destination.
Granting write privilege does not imply the user has delete or copy privilege. This allows
the administrator to control who can create tags or branches and who can delete version controlled
files. For example, to allow copy from /trunk to /tags/rel1, you create two access
rules:
You can toggle the display of role ACLs. The default is on. Go to the System page, and click System Config. Select the Yes or No radio button for Show ACLs?
When toggled on, you see any ACLs created by roles and groups listed on the Group Properties page, shown in the next illustration.
To create ACLs, go to the Security tab and click Create ACL. If you are creating multiple ACLs, click on List ACLs.
The following properties in the prefs.xml file can be used to control the ACL engine.
<Security>
<AccessControl>
<Enable>true</Enable>
<Replicate>true</Replicate>
<ClientTimeout>15s</ClientTimeout>
</AccessControl>
</Security>
By default, Access Control has access control enabled. To turn it off, add the lines to prefs.xml
and set Enable to false.
Access Control logs any Subversion user access (allowed or denied) in an audit trail file. Access Control produces a standard report, Users and Groups, but recommends you import the data into a database such as MySQL, so that you can make complex queries. WANdisco offers three such reports when set up with a database: Transaction History, Access Violation Report, and File.
To set up the more detailed reports, you need to:
svn-security/config/reports.tar file, which
contains WANdisco-supplied PHP scripts as part of the standard distribution.To ensure no audit records are lost, WANdisco recommends you schedule a job (using cron, for
example) to import the audit records into a database periodically.
Access Control does not automatically import data into the
database. You can do this manually or set up a cron job.
To do this, run the following commands from a terminal window:
%> mysql -u root -p
... [enter <password> at prompt]
mysql> CREATE USER <user> IDENTIFIED BY ‘<password>’;
mysql> GRANT ALL PRIVILEGES ON *.* TO ‘<user>’@’%’;
mysql> CREATE DATABASE wd_audit_db;
mysql> exit
7. Log in using the newly created user so that you can view the database:
%> mysql -h <current computer name> -u <user> -p ... [enter <password> at prompt] mysql> SHOW DATABASES;8. You now have access to the newly created 'wd_audit_db' database.
Download PHP 5.2.14 installer [20,877KB] - 22 July 2010
Begin the installation choosing "Apache 2.2.x module". When prompted for "Choose Items to Install", select "MySQL" from "Extensions".
9. Providing that you pointed the PHP installer to the Apache conf directory, the installer should have appended the following lines to the end of the httpd.conf file:
#BEGIN PHP INSTALLER EDITS - REMOVE ONLY ON UNINSTALL PHPIniDir "C:/Program Files (x86)/PHP/" LoadModule php5_module "C:/Program Files (x86)/PHP/php5apache2_2.dll" #END PHP INSTALLER EDITS - REMOVE ONLY ON UNINSTALL
Edit the Apache httpd.conf file:
<IfModule dir_module> DirectoryIndex index.html index.php </IfModule>
AddType application/x-httpd-php .php
In the PHP installation directory, edit the php.ini file to ensure that "short_open_tag=On"
I will not replicate existing instructions, only highlight what is missing.
The following block of code needs to be placed within a virtual host block of code in subversion.conf:
Alias /reports/ "c:\svn-replicator\reports" <Directory "c:\svn-replicator\reports"> Options Indexes MultiViews AllowOverride None Order allow,deny Allow from all </Directory>
For HTTPS, put Apache section under port 80 virtual host in the subversion.conf file.
You should ensure that the importauditdb script is run as a Windows scheduled task:
Ensure the command is correct by running it from the command prompt first.
10. Shutdown the replicator and restart Apache.
11. Decompress the php scripts at svn-security/config/reports.tar.
12. Edit the reports/config.php to point to the database you just created.
Modify the config.php file to update the server, username and password
entries along with the scm type, which is svn.
13. Edit the importauditdb script to match the changes to config.php:
dbhost, dbuser, and dbpass. It is recommended to not use the default
user, root.
14. Update your Apache httpd.conf file to point to the scripts. Make sure to
replace /home/wandisco/reports with your installation directory. You
may also want to rename the /reports/ alias (e.g. /wandisco_reports).
For example,
Alias /reports/ "/home/wandisco/reports/"
<Directory "/home/wandisco/reports">
Options Indexes MultiViews
AllowOverride None
Order allow,deny
Allow from all
</Directory>
15. Restart Apache.
16. Run the import tool. See Using the Import Tool.
17. You can now run the reports. See Running a Report.
The import tool requires the Perl::DBI module you've installed. Please run svn-security/bin/
checkdbi to verify that the module is properly installed, and the correct database driver is available on
your system.
The import tool is called importauditdb, and its usage is as follows:
perl importauditdb -host dbserver -user dbuser -pass dbpassword -f ../
audit/audit-trail.0
Here is an example of how to use the import command:
[admin@smp1 ~/svn-replicator]$ bin/importauditdb -h
Usage:
importauditdb [-host <db-host>] [-port <db-port>] [-user <db user>]
[-pass <db user password>] [-db <database to use>]
-f file-pattern1 file-pattern2 .. file-pattern-N
Defaults:
host : localhost
port : Default DB Port
user : root
password : empty
Database : wd_audit_db
Before using import, you must create a database on the database server.
The import tool automatically creates the table schema in that database, the first time it runs. The import tool uses standard SQL syntax, and makes use of a system function FROM_UNIXTIME. Please ensure your database version supports it. MySQL and Microsoft SQLServer both support this function.
Here is an example of how you would import a file:
perl importauditdb -host dbserver -user dbuser -pass dbpassword -f ../
audit/audit-trail.0
The audit-trail.0 file is located in the svn-security/audit directory. The file has a complete
history of all Subversion actions, listed in the following format:
# Column syntax - # 0 seq | 1 time | 2 txid | 3 cmd | 4 user | 5 ipaddress | 6 access | # 7 dir | 8 file | 9 rev
| Column no. | Description |
| 0 | Record Sequence Number |
| 1 | Transaction ID |
| 3 | Subversion Command Name |
| 4 | Subversion User ID |
| 5 | IP Address of user |
| 6 | Access Decision (Allow or Deny) |
| 7 | Subversion Directory being accessed |
| 8 | Subversion File being accessed |
| 9 | User's File Revision |
Auditing is controlled in the prefs.xml file. By default, Access Control enables auditing. You can turn it off by setting the Disable element to true.
<Audit> <MaxFileSize>10485760</MaxFileSize> <MaxFileCount>10</MaxFileCount> <Disable>false</Disable> <!-- this is the default --> </Audit>
By default, Access Control automatically rotates the files up to 10 times when they get to 10
megabytes. You can change these defaults in the prefs.xml file. The MaxFileSize element
specifies a size in bytes, and the MaxFileCount element specifies how many files to rotate
before recycling the files.
To create audit files in a different directory, create a symbolic link (svn-security/audit) to
another directory.
You do not want to lose any audit history. Make sure that any interval you schedule to import the files into a database is short enough so that all files in the MaxFileCount element are captured (and not overwritten).
1. Configure the report URI. Go to the Reports tab in the Admin Console. Click Configure URI. Enter in the IP address of the <reports apache server>:8080/<reports directory>. For example,
http://10.1.13.236:8080/reports (port 8080 providing you are not using SSL)
Click Update.
2. Go to that URL.
3. Select File Report from the main menu.
4. Enter the criteria for the report. For example, select a user from the dropdown, specify an access level or a Subversion command to filter the results. Note: use % for wildcards.
5. Click Run Report.
| Report Name | Description |
| Transaction History | Shows all transactions against Subversion |
| File | List file access and filter by parameters such as: date, access, command, user, ip address, directory, filename, revision or branch. |
| User | Show Subversion allowed / denied access per user. |
| Access Violation | Display all denied access to Subversion |
Copyright © 2010 WANdisco
All Rights Reserved
This product is protected by copyright and distributed under
licenses restricting copying, distribution and decompilation.
